Surface & Roughness Measurement

Surface characterization at the micro and nanoscopic scale

In the precision and ultra-precision manufacturing sector, the optimization of functional and safety-critical product properties is increasingly being carried out in the sub-micrometer range. Tight tolerances apply when it comes to inspecting both workpiece and tool. Standards-compliant determination of surface roughness or surface structure is thus an essential aspect of high-precision quality and process control.

fionec’s fiber-optic measuring systems deliver the measurement data necessary to compute all the common roughness, waviness and profile parameters. The flexible, contactless technology makes it possible to adapt the measuring systems to your individual requirements.

RMP – Roughness Measuring Device

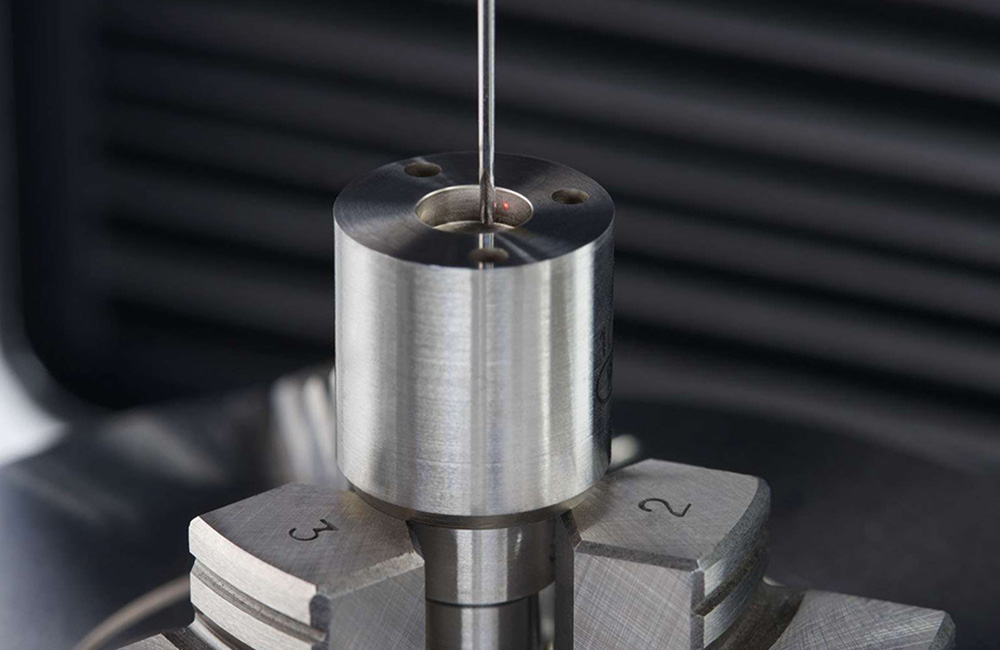

Our roughness measuring station RMP is optimized for performing fast, high-accuracy roughness and surface measurements of precision turned parts. A robotic loader for automatically loading the components can be easily attached using the integrated hardware and software interfaces.
To the product >>

Integrated solutions

Alternatively, surface characteristics also be determined by integrating the high-precision FDM-1 and FDM-2 sensor technology in coordinate measuring machines, automatic testing apparatus or precision machine tools. We would be happy to develop custom solutions to meet your metrological challenges!
To the product >>

The advantages

  • Reliable and standards-compliant

    fionec’s optical measuring equipment works in compliance with the relevant DIN EN ISO standard. It is possible to perform a profile-based, reproducible evaluation of all recognized and internationally used roughness parameters, such as mean roughness (Ra), roughness depth (Rt) and mean roughness depth (Rz). Automatic signal optimization means the sensor is able to achieve consistent measurement values for heterogeneous, technical surfaces too.

  • Fast 100-percent testing

    With speeds of up to 10 mm/s, the fiber-optic technology measures surfaces ten times faster than comparable tactile measuring devices. High measuring frequencies of up to 20 kHz and the non-destructive nature of the technique make it possible to inspect all items during production – including at production speed. Built-in hardware and software interfaces allow for integration into existing manufacturing processes.

  • Absolutely contactless

    Contactless inspection techniques, such as white light interferometry, are ideal for performing high-precision measurements of microstructures. In contrast with tactile measuring devices, fiber-optic sensors from fionec do not affect or damage the surface of the test specimens. This makes it possible to perform roughness measurements even on delicate objects, such as lenses, wafers and optical flats.

  • Miniaturized measuring equipment

    The FDM Series sensors from fionec offer unparalleled flexibility thanks to their use of miniaturized probes. They make it possible to perform roughness measurements even under difficult circumstances, such as in small drilled holes from 0.1 mm in diameter or on free-form surfaces like the flanks of precision gear wheels.

  • Maximum precision

    fionec’s fiber-optic measuring systems deliver highly accurate, absolute measurement values. The typical standard deviation is just a few nanometers. As such, the data serves as the basis for a reliable quality management system even with extremely tight manufacturing tolerances.
